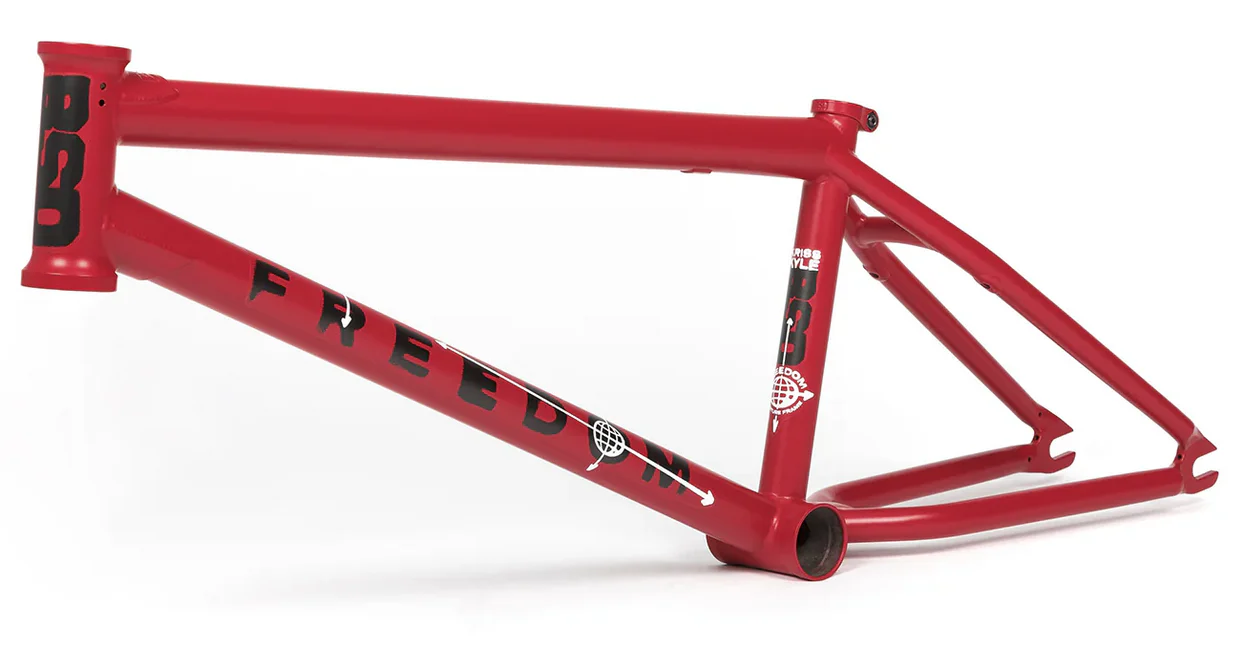

The BSD Freedom Frame is the signature frame of BSD team rider, Kris Kyle. BSD took the already great design of of Kyle's last frame and improved on it with and investment cast wish bone to make the rear end stiffer and stronger to resist bending under heavy abuse.

Kriss Kyle signature
Sanko Japanese seamless 4130 CrMo triple butted tubing
Invest Cast Seat Clamp: The invest cast seatclamp is brazed onto the frame so there's no need for a separate clamp. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt. Note the new seatstay bridge too.
Invest Cast Dropouts: Because the dropout is cast as one piece it's much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there;s an integrated chain tensioner bolts inside.
Invest Cast Wishbone: We've used a new heat treated invest cast wishbone on the Freedom frame. This combined with the new seatstay bridge offers a stronger and stiffer rear end, especially good for sideways landings.

Toptube lengths	20.2 / 20.5 / 20.8 / 21.1 / 21.5
Headtube angle	75°
Headtube length	117mm
Seattube angle	69.5°
Rear end length	13.2″ – 13.625″ - note the 21.5″ frame has a longer rear (13.4″ – 13.825″)
BB Height	11.5"
Standover height	9"
Weight	5lbs
Brake mounts	removable - brake kit available separately
Tubing	Sanko Japanese seamless 4130 CrMo / triple butted
Headtube	Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket	Heat treated 4130 CrMo / CNC machined
Chainstay Wishbone	Heat treated 4130 CrMo / Invest cast
Dropouts	Heat treated 4130 CrMo / Invest cast
Seatclamp	Heat treated 4130 CrMo / Invest cast
