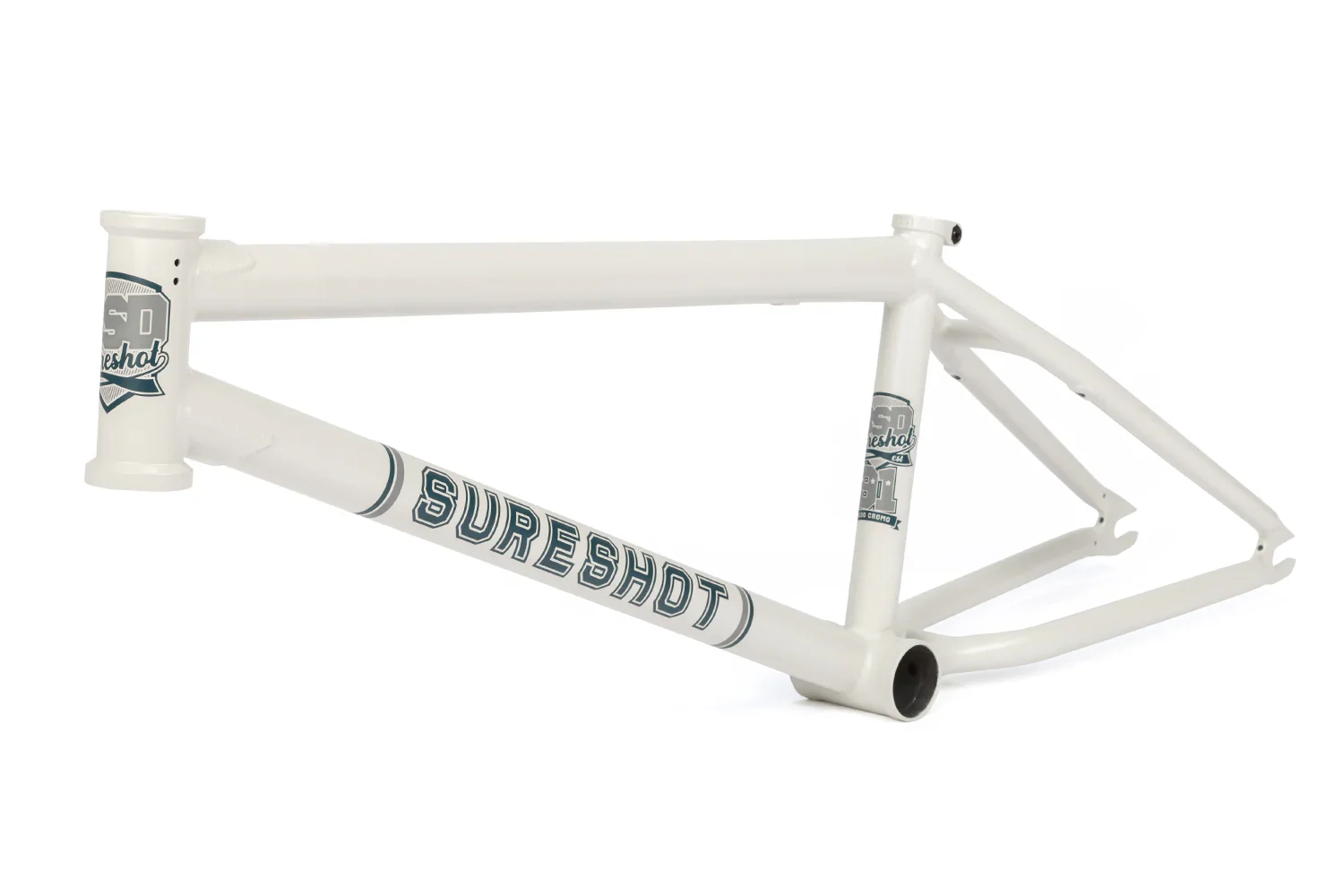

The Sureshot is designed with a more ramp/park/trails geometry than our other frames. Utilizing a low BB, longer rear end, mellower head angle and removable brake mounts, this frame is a true all rounder.

INVEST CAST SEATCLAMP

The invest cast seatclamp is brazed onto the frame so there's no need for a separate clamp. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt.

INVEST CAST DROPOUTS

Because the dropout is cast as one piece it's much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there's an integrated chain tensioner bolts inside.

INVEST CAST SEATSTAY BRIDGE

A new heat treated invest cast seatstay bridge on the Sureshot frame which offers a stronger and stiffer rear end.

Toptube lengths	20.7" / 21" / 21.3" / 21.7"
Headtube angle	74.75°
Headtube length	117mm
Seattube angle	71°
Rear end length	13.4 - 13.9"
BB Height	11.5"
Standover height	9"
Weight	5lbs
Brake mounts	removable - brake kit available separately
Tubing	Sanko Japanese seamless 4130 CrMo / triple butted
Headtube	Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket	Heat treated 4130 CrMo / CNC machined
Dropouts	Heat treated 4130 CrMo / Invest cast
Seatclamp	Heat treated 4130 CrMo / Invest cast
