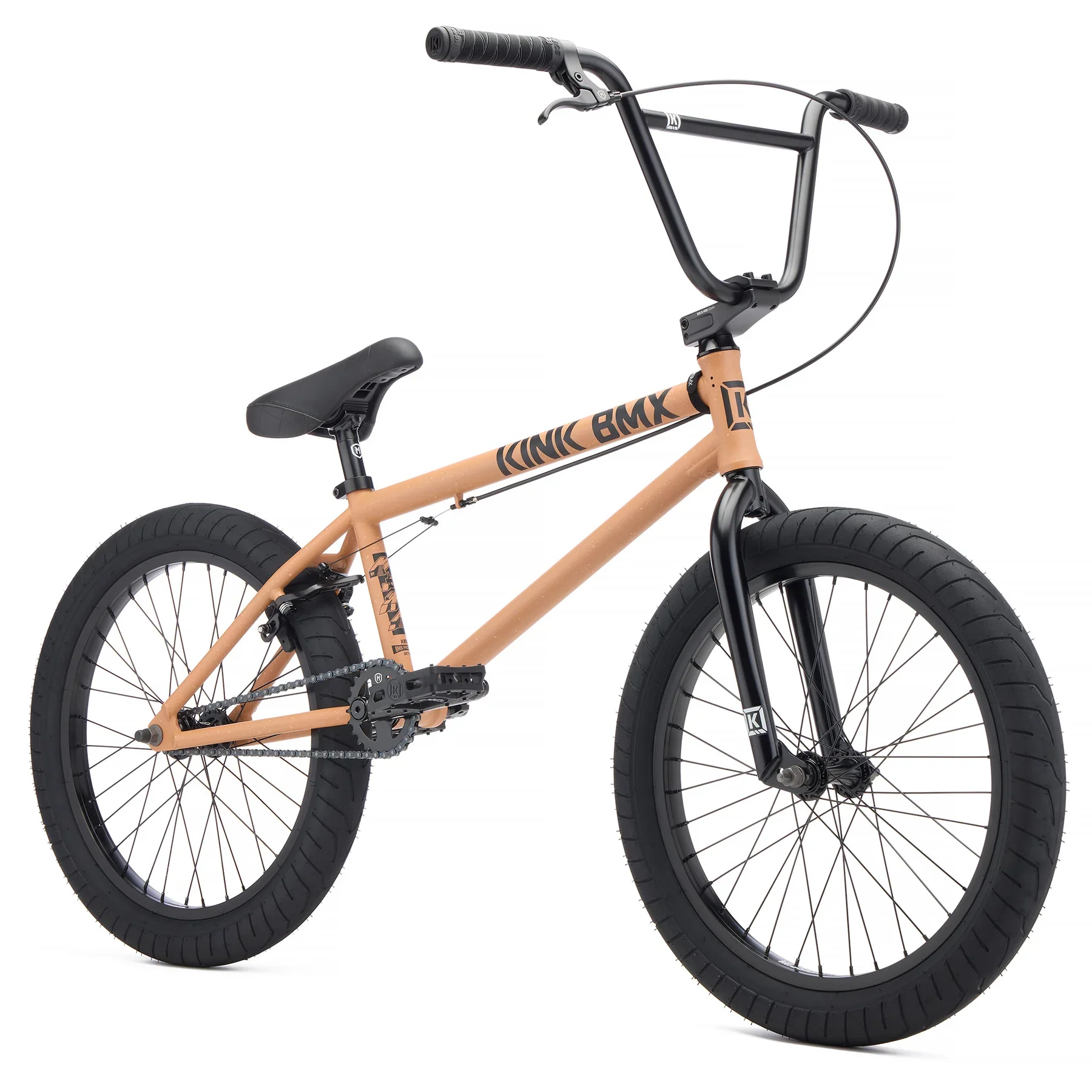

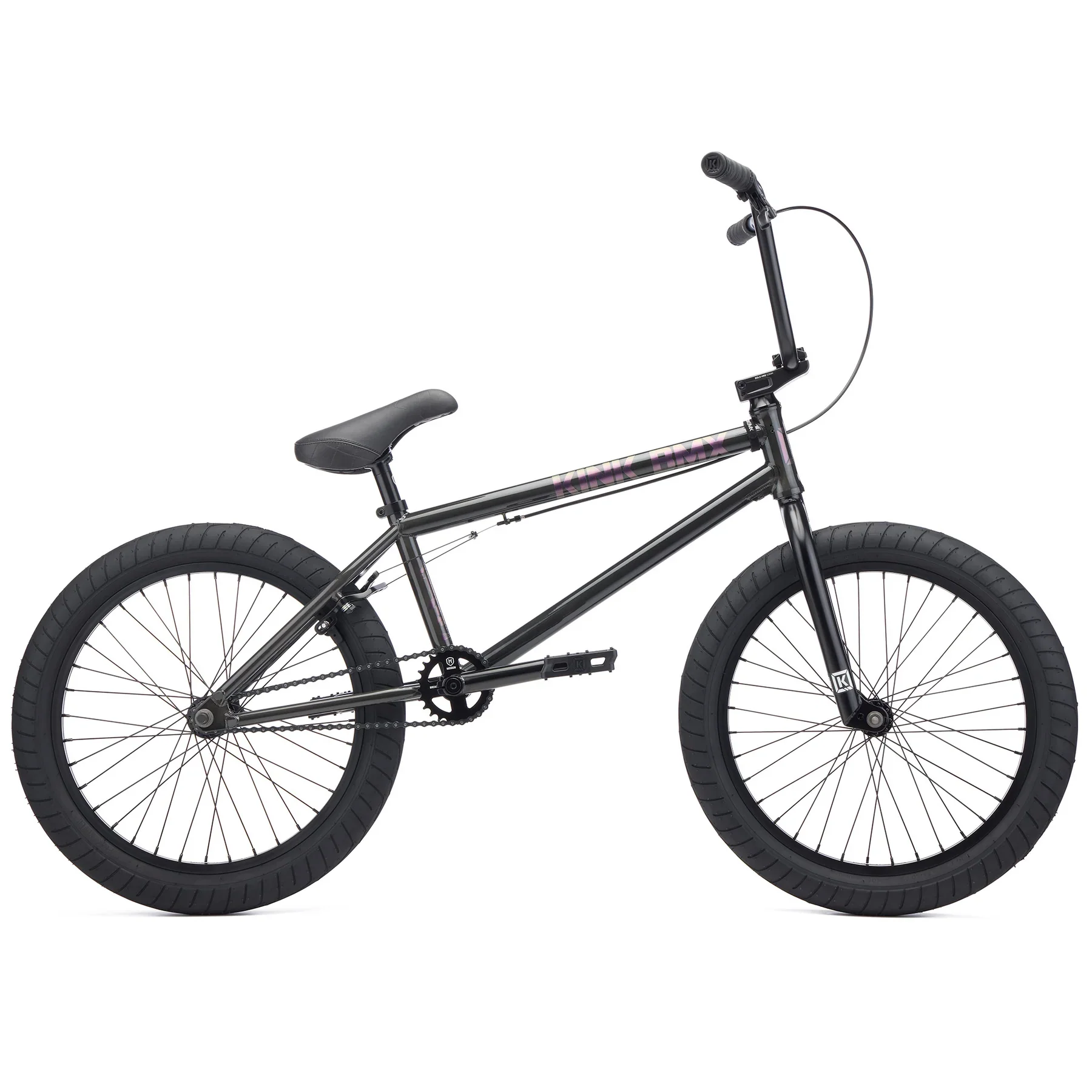

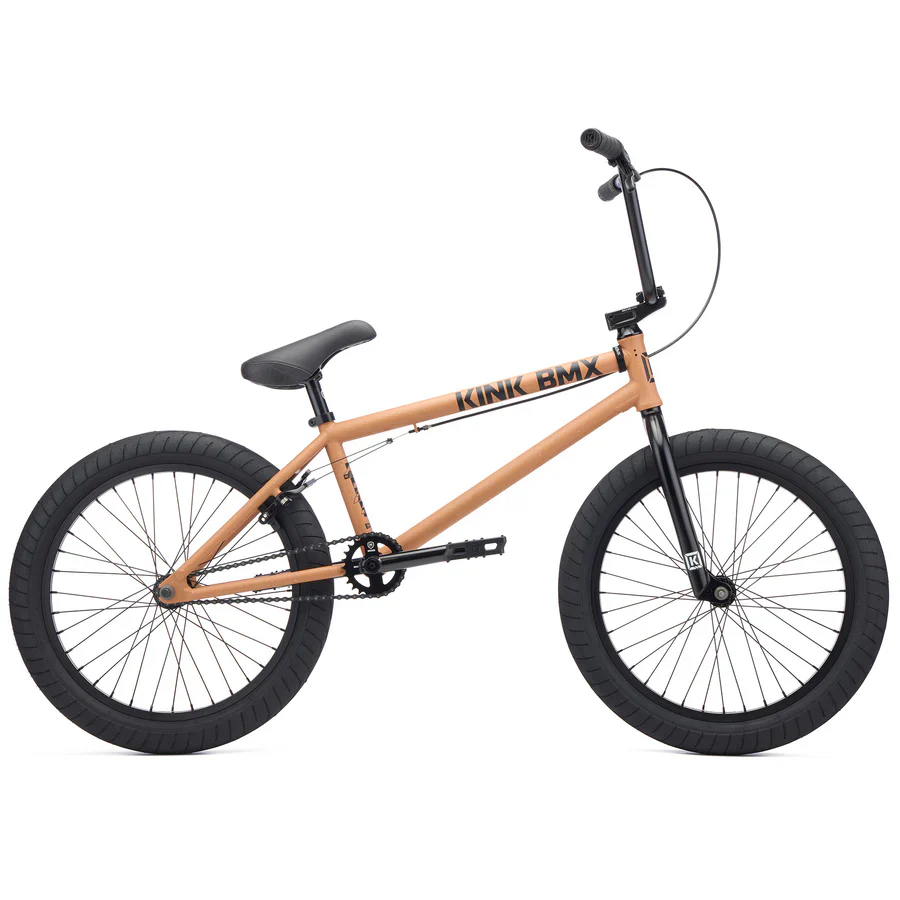

Kink Setup XL Bike 2027

The Kink Setup is a great all purpose bike for anyone looking to just cruise around the neighborhood, or take their riding to the next level. The Setup picks and chooses its battles with the features that are most important to keep the cost down while giving the most quality it can at the price point. A chromoly front end paired with a sealed bottom bracket and headset give it strength where its needed along with ease of maintenance with the important bearings being sealed.

FRAME Kink Setup XL 4130 Chromoly Front Triangle	PEDALS Kink Hemlock
FORK Kink Circuit 4130 Chromoly Steerer, Tapered Fork Legs	CHAIN Mission 410
BARS Kink T925 9.25" 100% 4130 Chromoly	SPROCKET Mission Breach 25T
GRIPS Kink Ace Flangeless	SEAT Kink Plymouth Stealth
STEM Kink Bold HRD 50mm	SEAT POST Mission Stealth
HEADSET Mission Sealed Integrated (41.8 x 45)	SEAT CLAMP Mission Slim Clamp
BRAKE LEVER Mission Token	FRONT HUB Mission Covert Unsealed 3/8″ Axle
BRAKE CABLE Mission L3 Linear	REAR HUB Mission Engage Sealed Cassette 14mm
BRAKES Mission Cease V2	DRIVER 9T
CRANKS Kink Ridge 3pc Tubular Chromoly 170mm - 8 Spline	RIMS Mission X7
BOTTOM BRACKET Sealed Mid 19mm	TIRES Kink Sever 2.4"
PEGS  N/A	WEIGHT  27lb 0oz

Toptube Length	21"
Chainstay Length	13.25"
Headtube Angle	75°
Seattube Angle	71°
Standover Height	9″
Bottom Bracket Height	11.6"
Fork Offset	30mm
