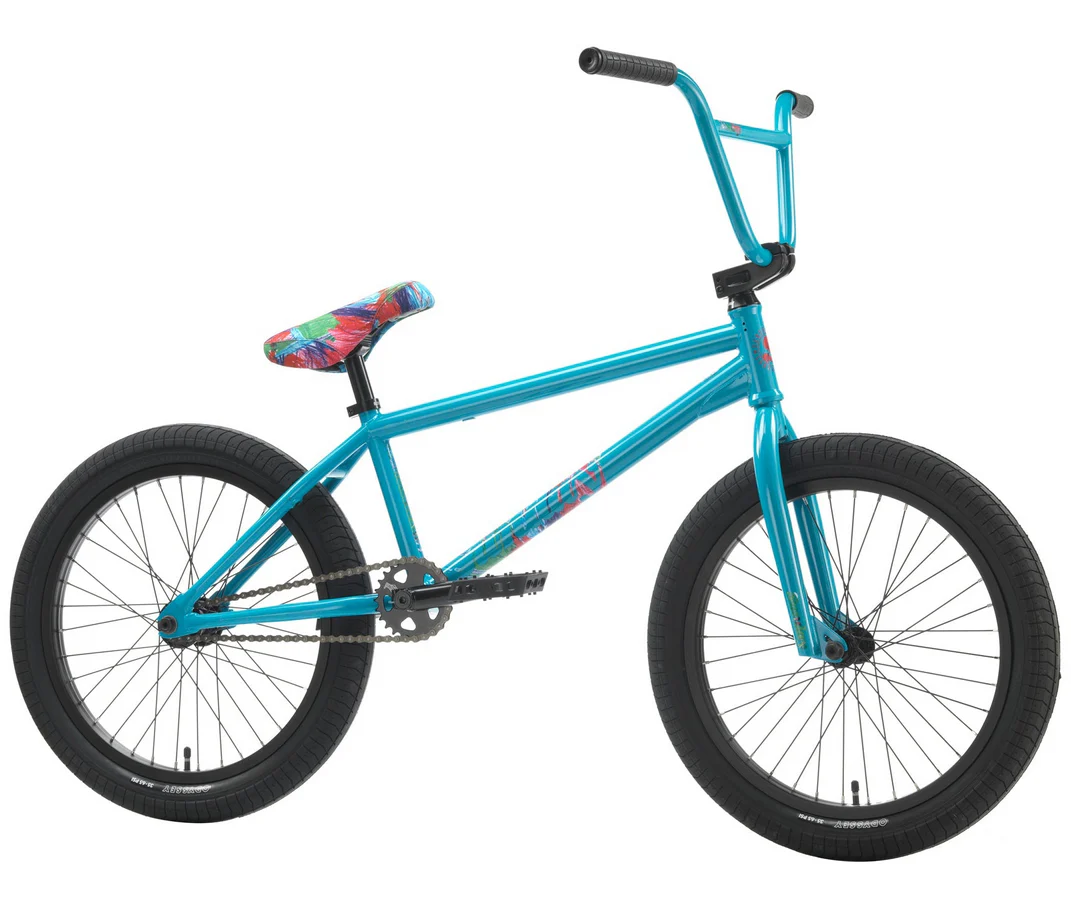

Sunday Aaron Ross Signature Bike

The Sunday Aaron Ross Signature Bike not only uses his signature parts but mimics a bike for serious riders.

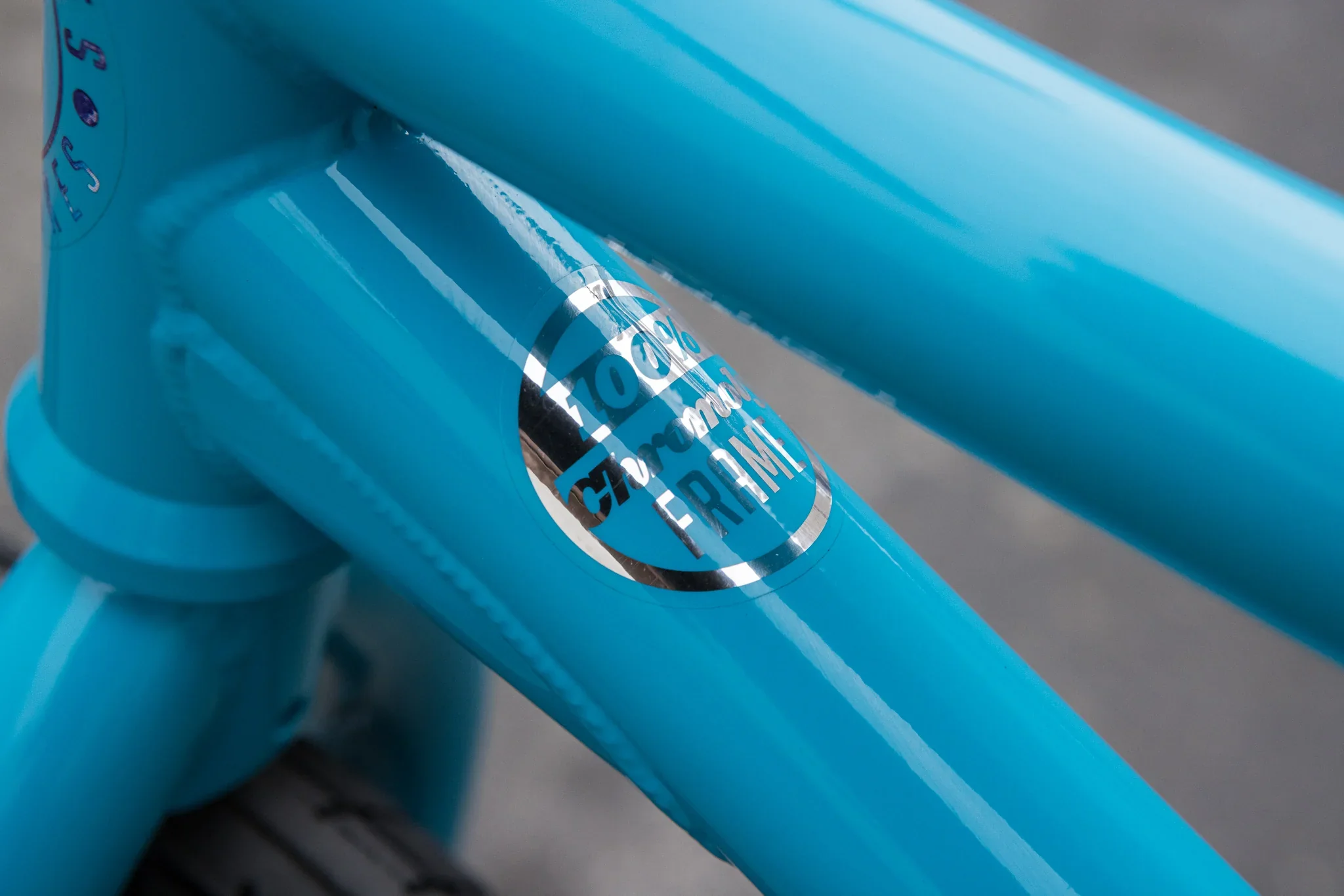

• 100% Chromoly Frame
• Odyssey Clutch v2 Freecoaster
• Sealed Front & Rear Hubs
• Odyssey Stage 1 Rims
• Removable Brake Hardware
• Odyssey Keyboard v2 Grips
• Odyssey Aaron Ross Seat
• Sunday Freeze Top Load Stem
• Odyssey Springfield Brakes and Lever
• Odyssey Path Pro OEM 2.40" Tires
• Odyssey Twisted Pro Pedals
• FSA Conical Headset

Specifications

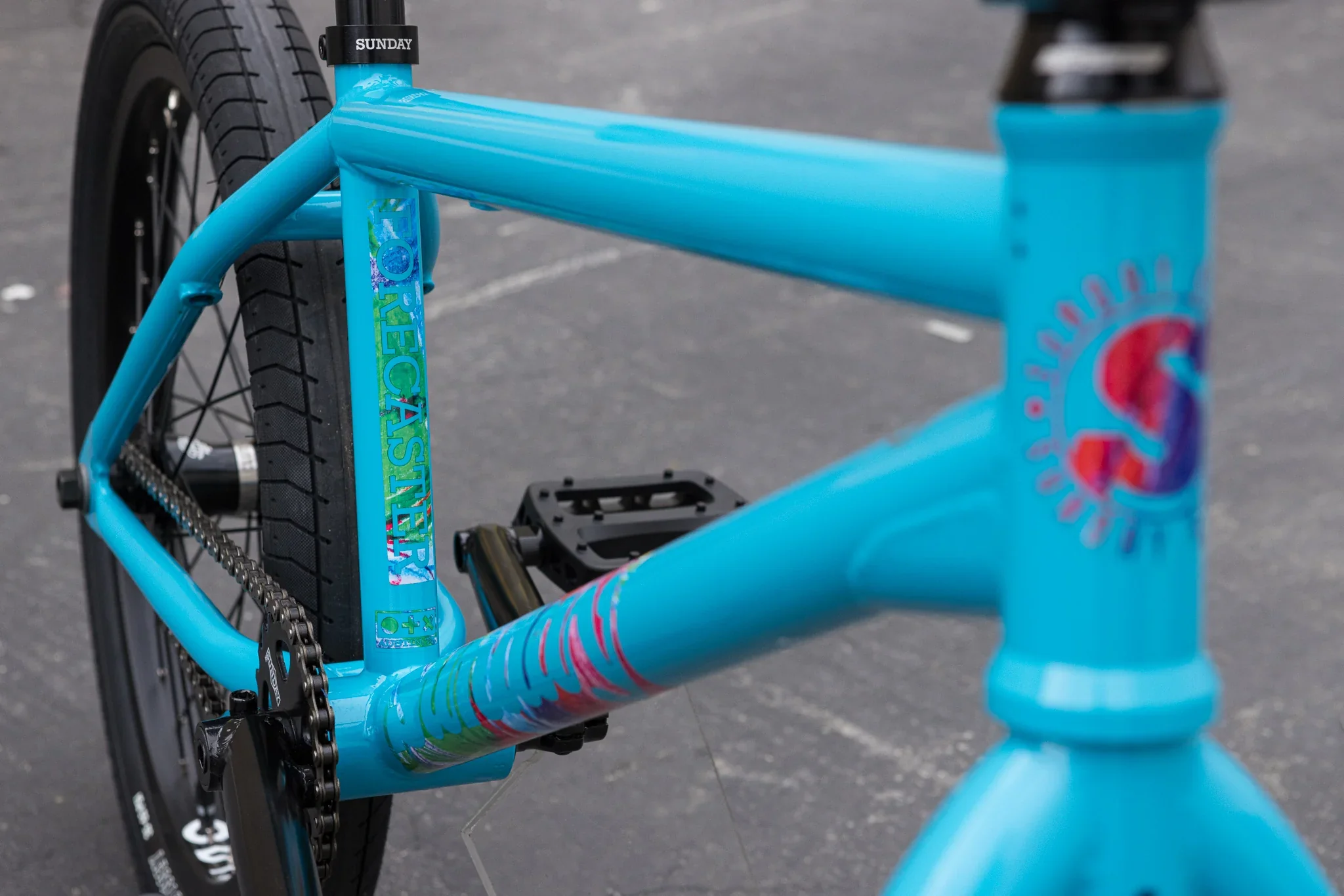

Frame: Sunday Forecaster, 20.5" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load

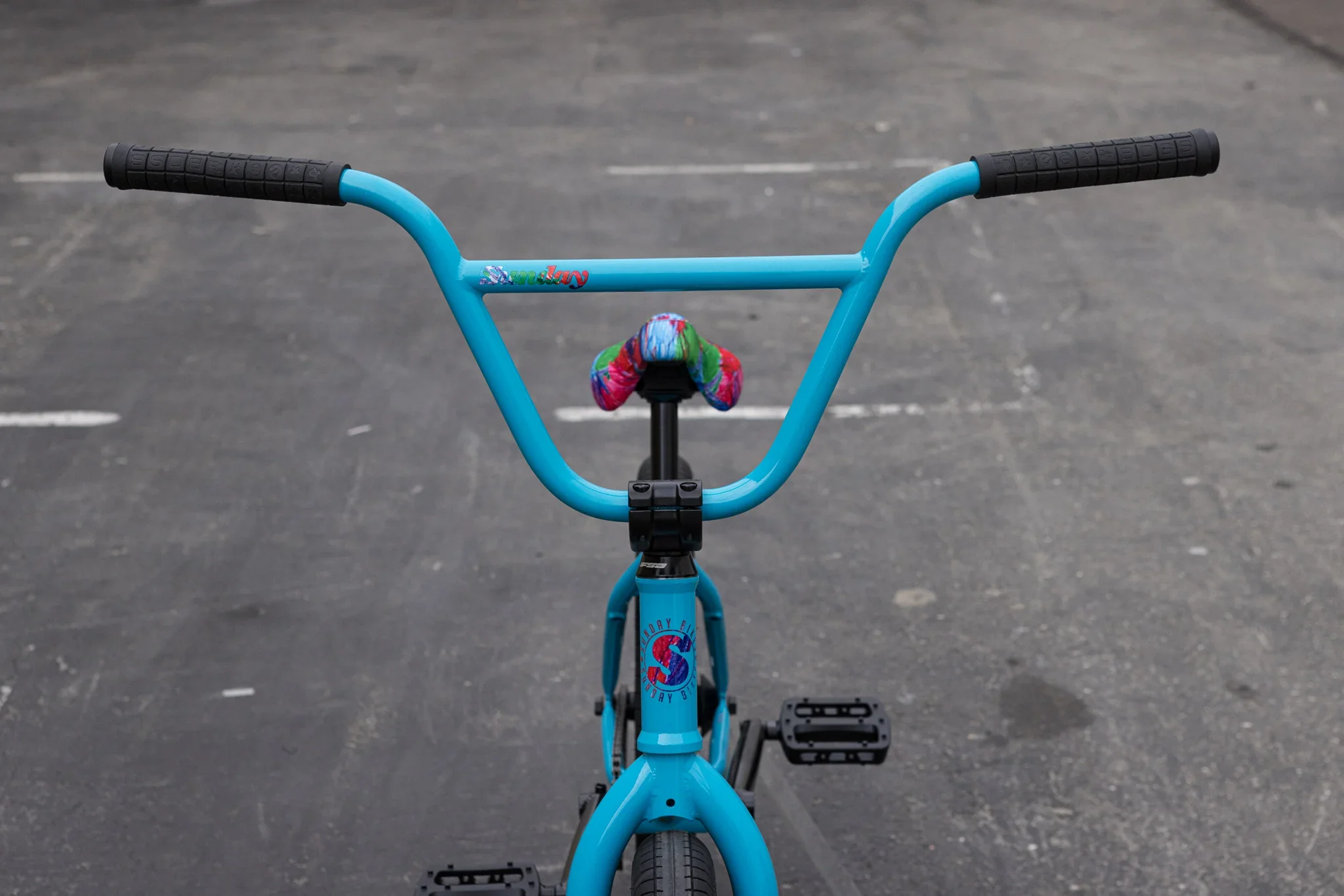

Handlebar: Sunday, 2-piece

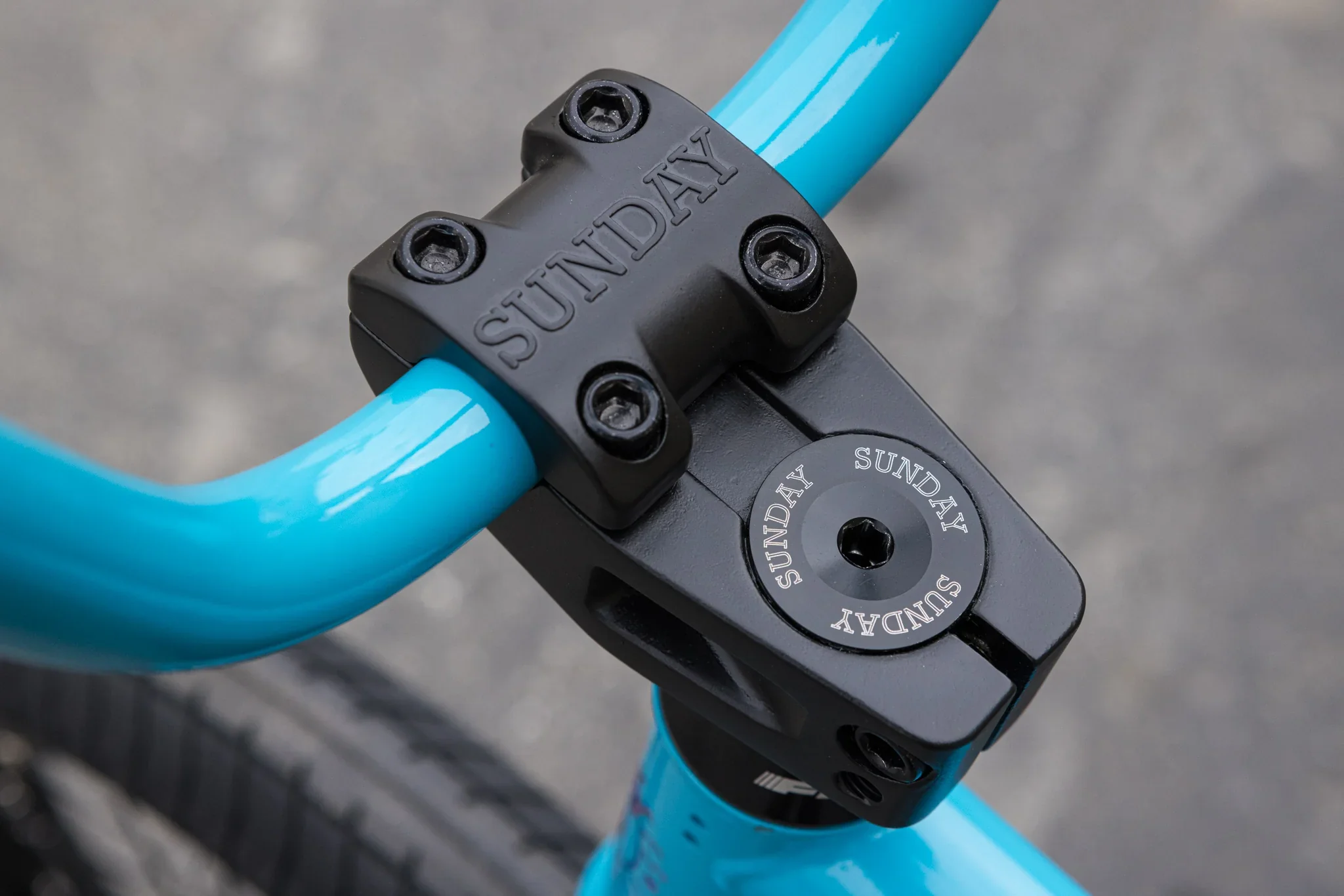

Stem: Sunday Freeze front load, 48mm
Headset:  FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Quik Slic

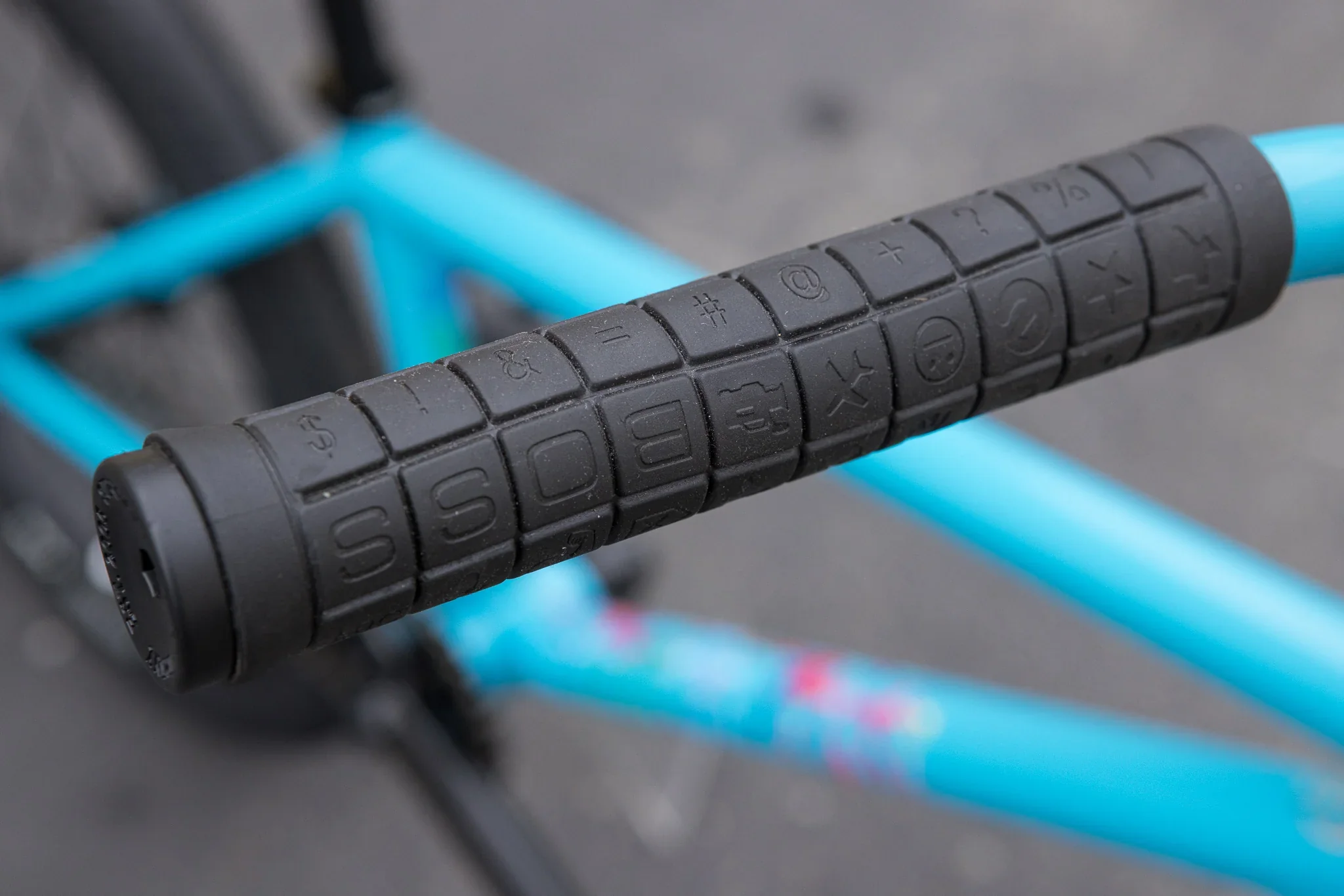

Grips: Odyssey Keyboard v2, dual-compound

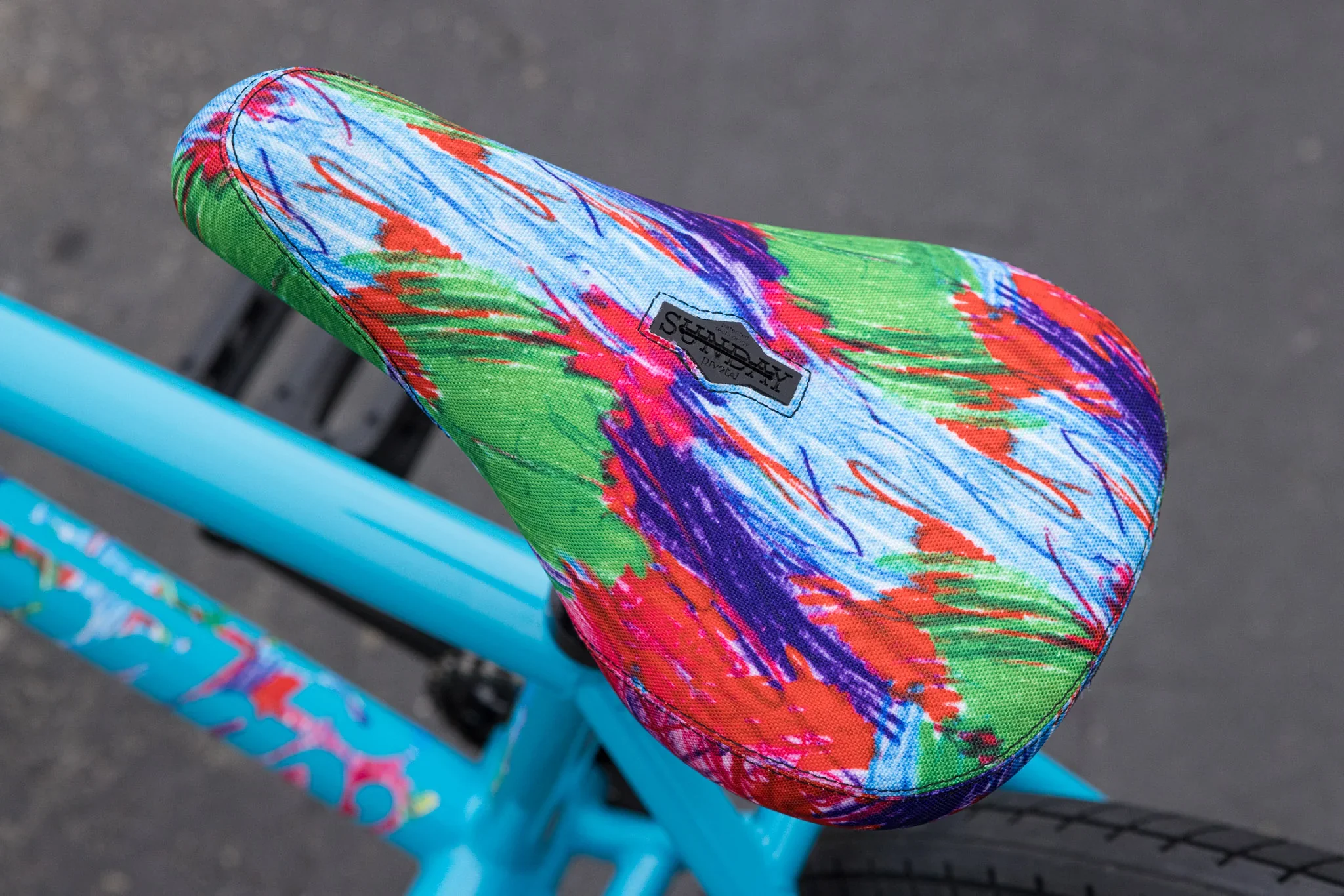

Seat: Odyssey Aaron Ross, Pivotal
Seat post:  Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Stage 1, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle

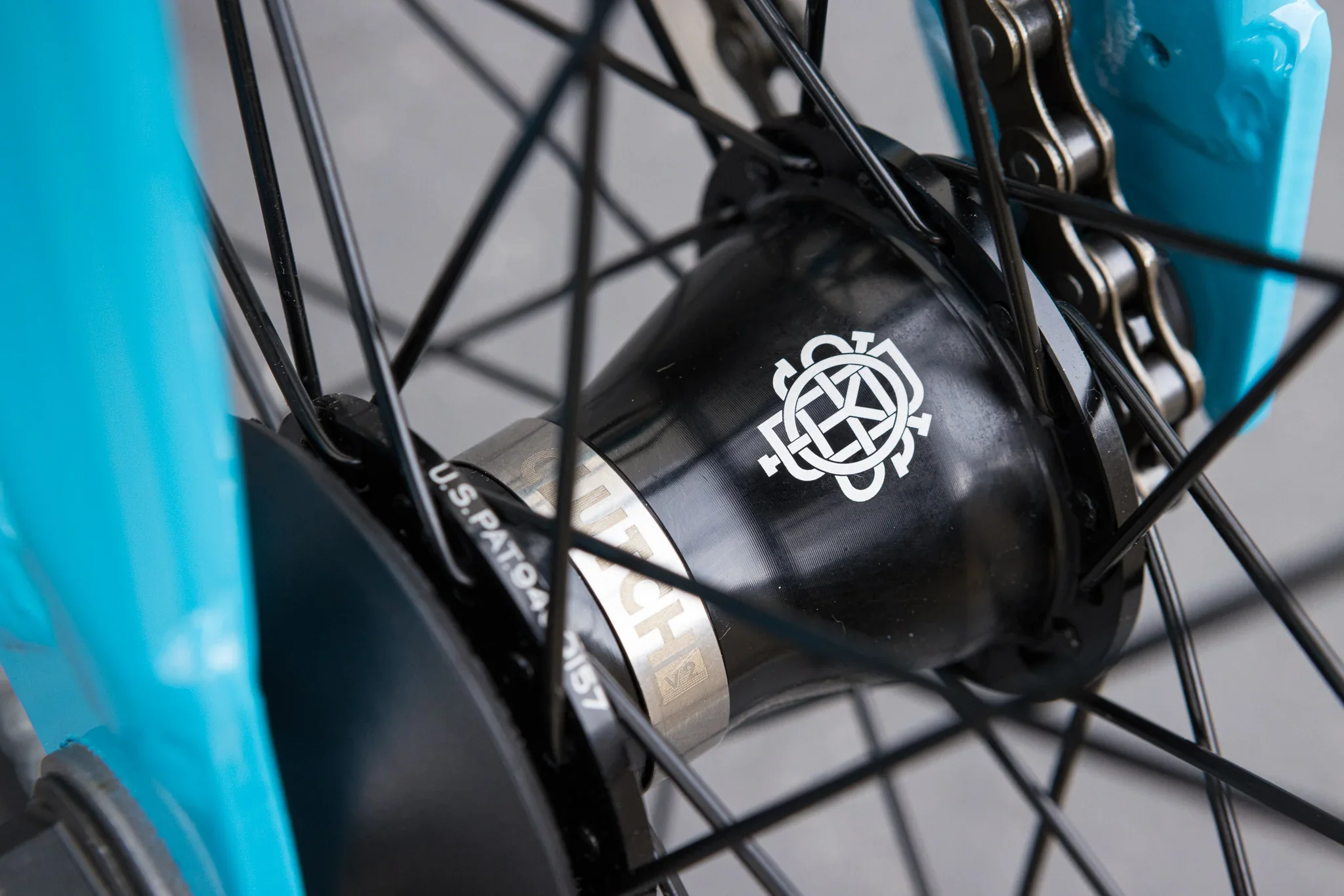

Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, non-drive side plastic guard
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 26.78lbs (with brakes)

Frame Geometry

Top Tube Length: 20.5"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.7"
Standover: 9"

Handlebar Geometry

Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
