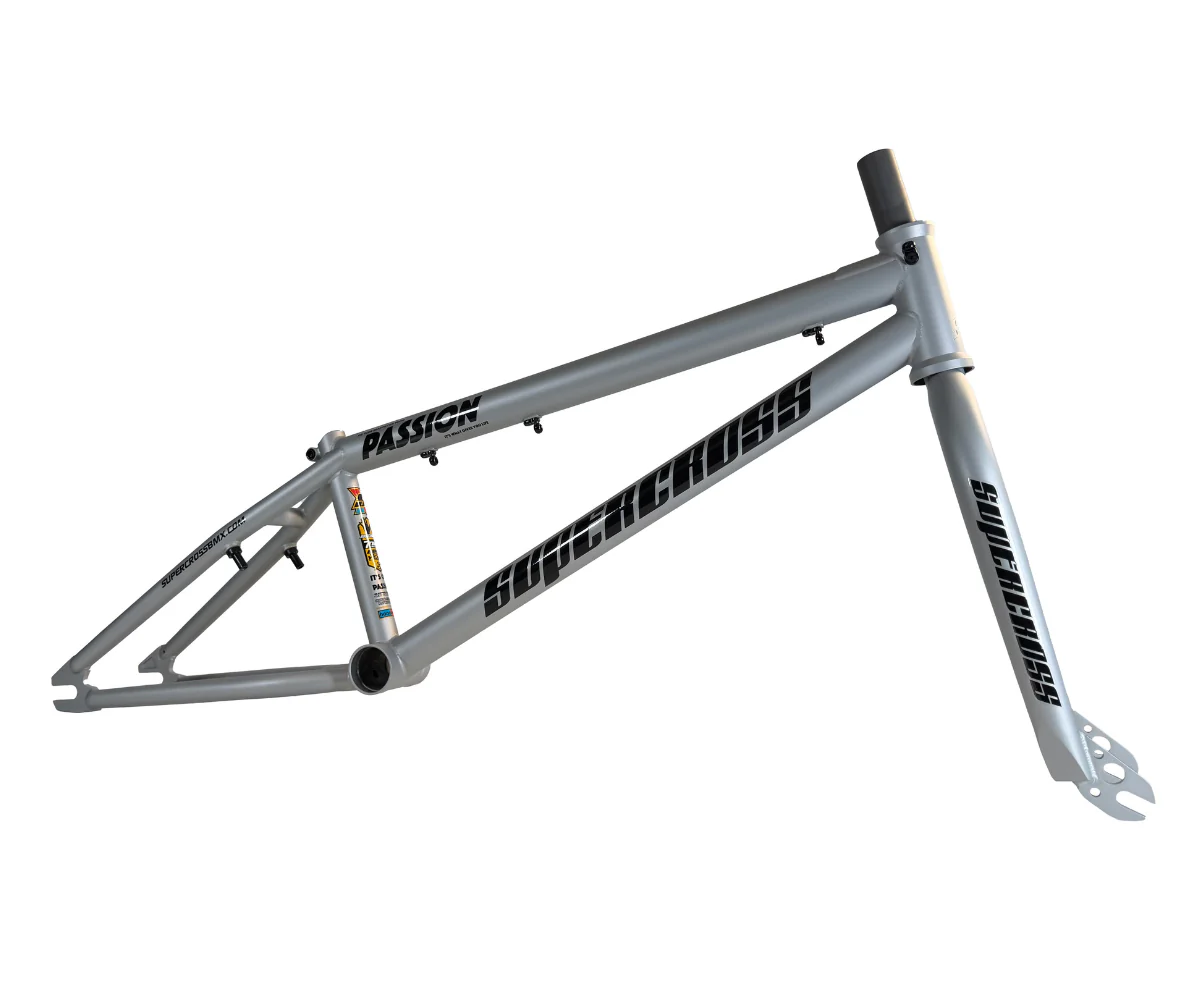

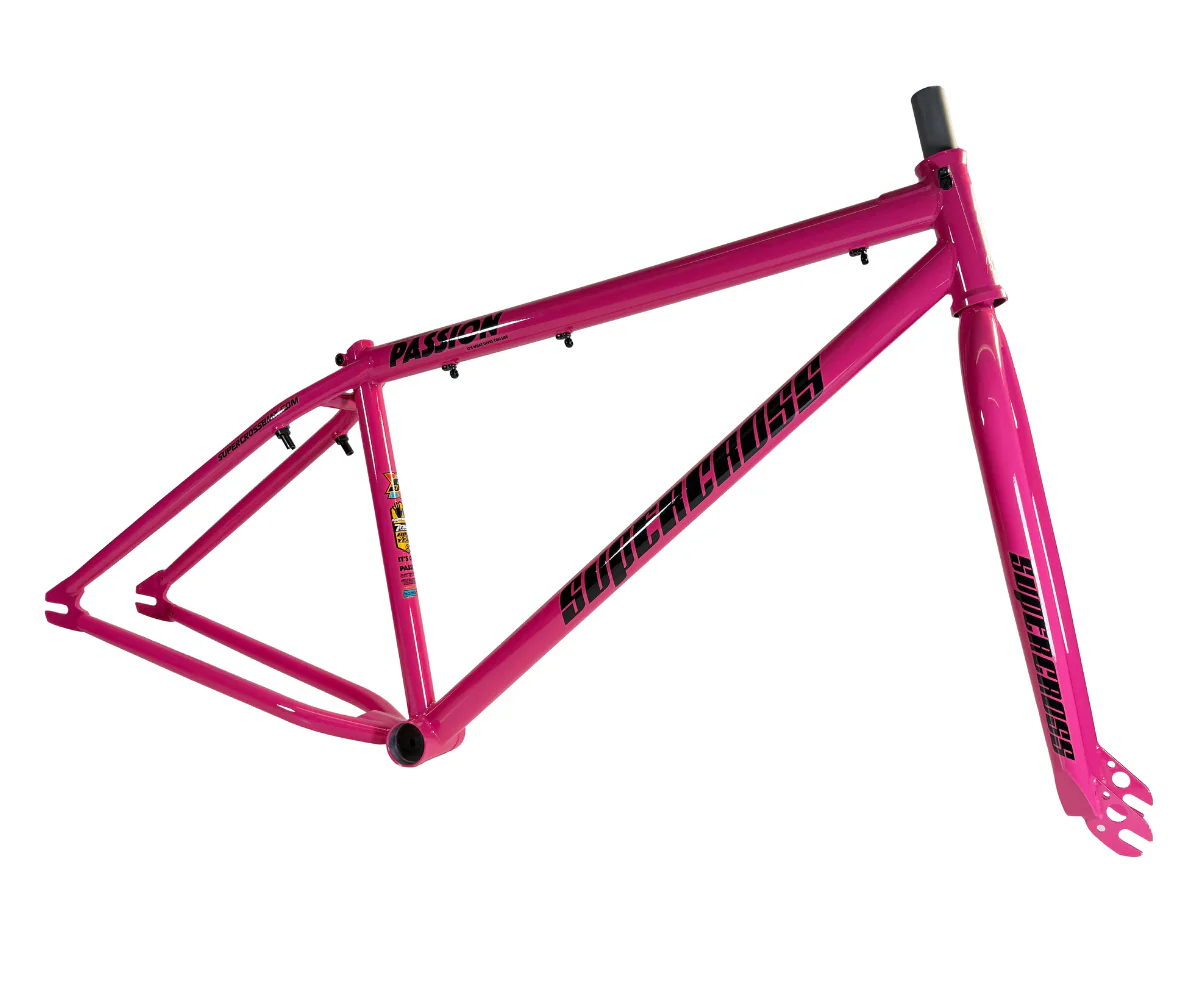

Supercross BMX | Passion BMX Frame

Your Passion. Our Passion.

Having fun on BMX bikes.
That’s what the Passion was built for from day one, and it’s still the reason we make it today. Everything about the Supercross BMX Passion is designed to do one thing: let you have the most fun possible on your bike.

---

The “Swiss-Army Knife” of BMX

The Supercross BMX Passion has long been called our “Swiss-Army Knife” of BMX bikes, and now it gets even better. To add even more versatility and fun, we’ve expanded the lineup to include 26" and 29" wheel sizes—perfect for all the Big BMXers out there.

---

Frame Construction & Features

The Passion is a full-featured Street / Park / Trail frame, built with a premium blend of full seamless and heat-treated Cro-Mo, along with Reynolds tubing blends.

Key features include:

• 1 1/8" Campy integrated Cro-Mo head tube, 3D CNC machined

• 3D CNC machined Mid BB shell

• Removable 990 brake mounts

• Built-in seat post clamp with pivotal cut, allowing you to drop your seat as low as you want

• CNC’d and laser-cut 1/4" thick Cro-Mo 14mm dropouts

• Wishbone lug behind the BB shell

Every feature you want is here—ready to ride and ready to have fun.

---

Available Sizes

Currently available in the following sizes:

• 20" – 20.5" TT

• 20" – 21" TT

• 20" – 21.5" TT

• New 26" and 29" wheel sizes

Full geometry details are listed below.

GEOMETRY

20" Wheel Passion - 20.5" TT, 13.625 Rear C/S at Center, 11.625 BB, 75º Head Tube Angle, 71º Seatmast Angle , 9" Standover

20" Wheel Passion - 21" TT, 13.625 Rear C/S at Center, 11.625 BB, 75º Head Tube Angle, 71º Seatmast Angle , 9" Standover

20" Wheel Passion - 21.5" TT, 13.625 Rear C/S at Center, 11.625 BB, 75º Head Tube Angle, 71º Seatmast Angle , 9" Standover

26" Wheel Passion - 22.75" TT, 17 Rear C/S at Center, 11.625 BB, 71º Head Tube Angle, 71º Seatmast Angle , 14.875" Standover

29" Wheel Passion - 23.75" TT, 17.75 Rear C/S at Center, 11.625 BB, 69º Head Tube Angle, 71º Seatmast Angle , 16.125" Standover

---

Colors

Available in:

• Hi-Vis Yellow

• Eggplant

• Matte Stone

• Toasted Marshmallow

•  Raspberry

There’s a color and size for everyone. Be sure to pick up your matching SLT Fork to complete the build.

---

What’s Included

The Passion is sold as FRAME ONLY.
